50 Acres per Hour |  Capacity: 10.5 Gal (40L) |  Spray Width: 16 to 32 ft (5 to 10 meters) | Max Flow: 3 GPM (12LPM) |  Droplet Size 60 - 400 microns (depending on the actual operating environment, spray flow, and other factors)

Overview

The XAG P100 Spraying, Seeding & Mapping Drone

Meet XAG's Flagship

Great Capacity | Hydro-Cooling Rapid Battery Charging | Rotary Atomization

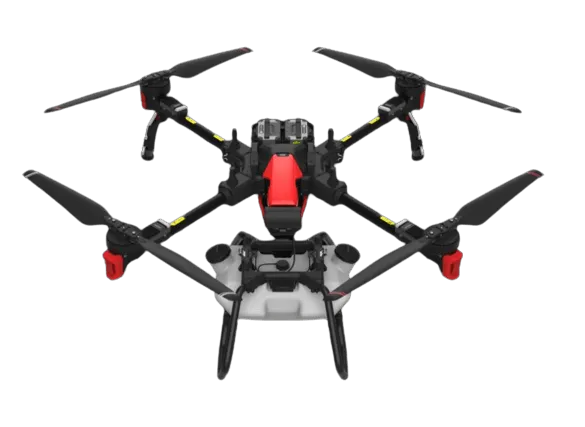

P100  10.5 gal (40L) Spraying Drone - the ultimate in productivity

The XAG P100 10.5 gallon is earning the praise of applicators and producers across the globe. Industry best, hydro-cooling rapid charging is ideal in hot climates and ensures maximum productivity with minimal ground time. Why does charging matter? Simply put - it is your biggest bottleneck to your productivity. XAG has truly mastered their systems with innovative charging systems with the idea that you should spend no more than 90 seconds on the ground for refilling / swapping batteries.

Quick-Swap Application Chassis

With the flip of two levers and disconnecting a few plugs, within 90 seconds, the P100 drone's spray tank & landing gear can be swapped to either another (refilled) tank or to begin a seeding job with the RevoCast. This hot-swap design also makes transportation and maintenance easier.

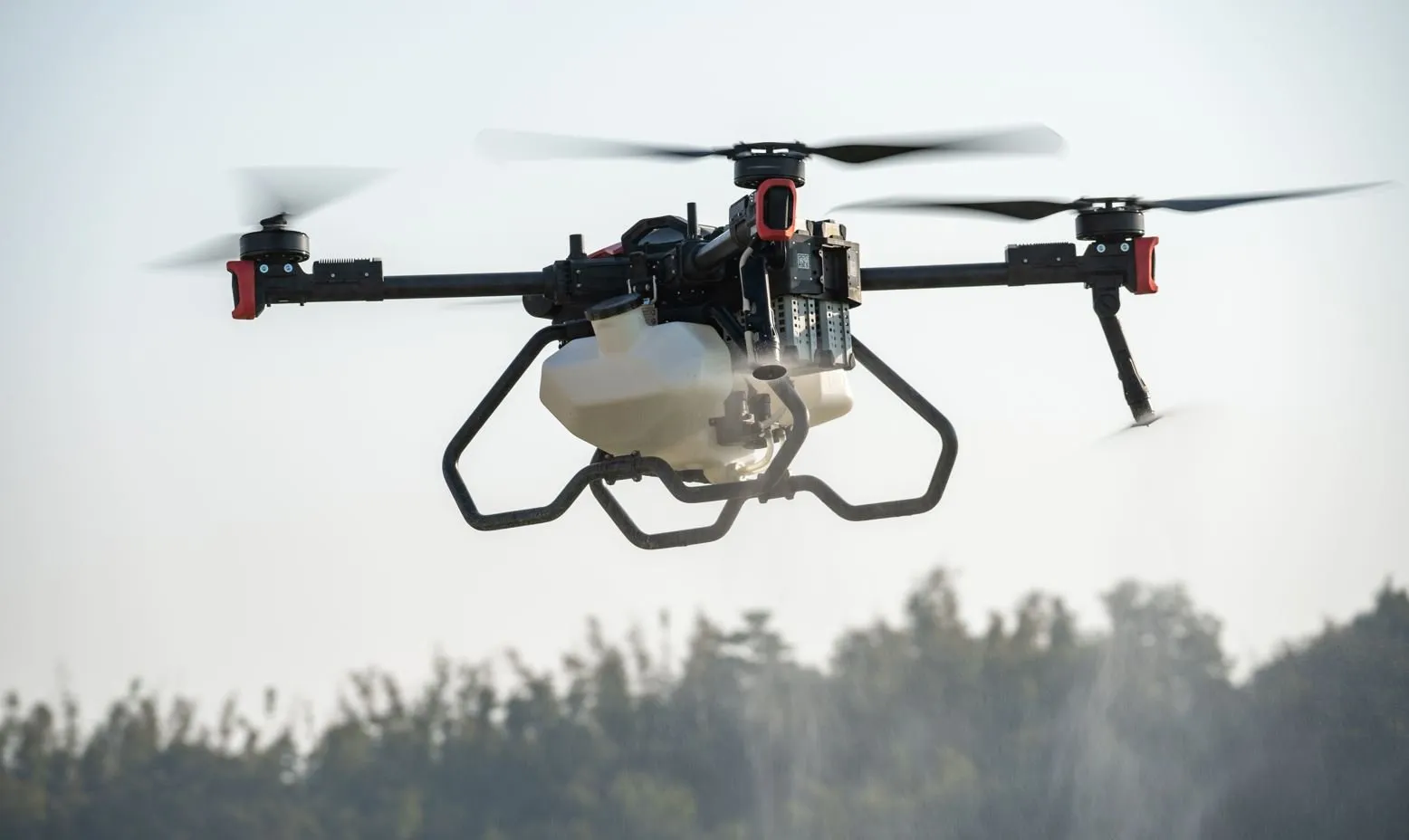

XAG RevoSpray 2 : Mega-Flow Spraying, Smooth and Precision to Every Droplet

Combined new peristaltic pumps and nozzle shutoff valve with solid centrifugal atomization technology, P100 brings an evolution of both flow rate and efficiency, making precision spraying go a step further.

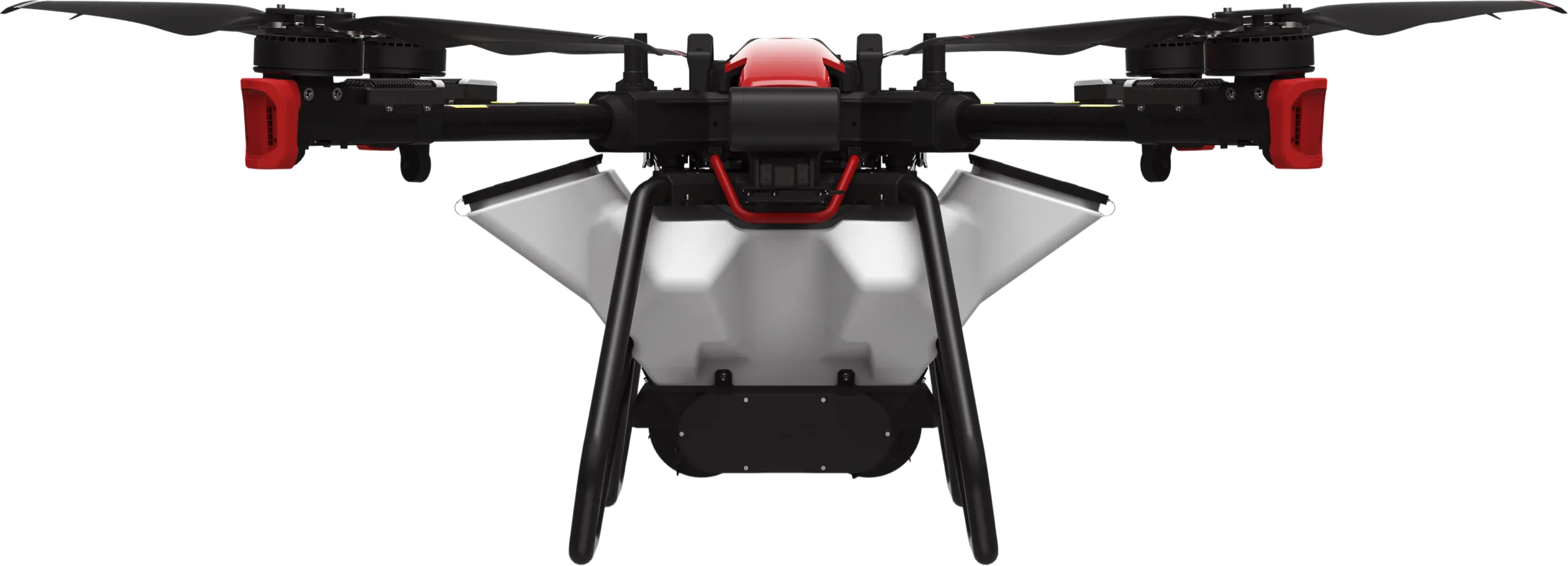

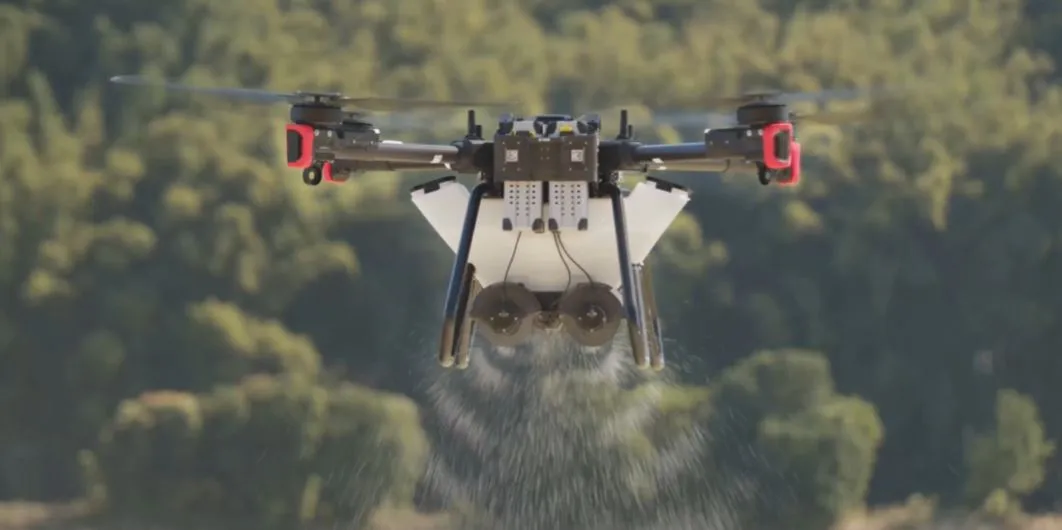

XAG RevoCast 2: Spread with High Efficiency and Precision

Adopt a completely new spreading disc and screw feeder design. Radically altering the way that agricultural drones are deployed. Increased precision and effectiveness.

SuperX4 Intelligent Control System: A Smart Core Powered by AI

The powerful AI algorithm and high-tech controls are combined in the SuperX 4 Pro Intelligent Control System. Powertrain with performance, this improved control module with it's flexible task systems integrated into it. Can quickly and easily execute broadcast and precise spraying operations. a wise companion for digital  agriculture.

Adapting to Terrains and has Flexible Obstacle Avoidance

Using dynamic radar and a terrain-adaptive module, it can detect approaching impediments in the surrounding area while flying. Locate and measure obstructions, within 40 meters of the target and above to achieve prediction. Safer flight from all angles.

Pilot Sight Livestream: Field Condition Clearly Displayed, More Protection , Safer Flights

Users can instantly discover flight status and crop conditions by receiving real-time operating photographs. Drones can operate safely and precisely in complex environments.

Stronger, Smarter, and Safer Battery Power

The brand-new B13960S Smart Battery has more electric power and a faster super charge rate.

XAG Local Network Terminal: A Fix for Unreliable Network Connections

When a 4G network is there but there is a weak signal or no 4G network, the XAG Local Network Terminal delivers reliable communication connectivity for completely autonomous drone operation. This is the answer you need to maintain stable, safe, and high-accuracy flight by bridging signal connection between handheld control terminals, portable RTK base station, and XAG agricultural drone. Removing the infrastructure restriction on the internet.

Want a closer look at the large capacity XAG P100 Sprayer Drone?

Click the "More Info" tab above

More Info

Specifications

Aerial Platform
Basic Parameters

Overall Dimensions

• 98 x 97 x 27 inch (2487 × 2460 × 685 mm) (blades unfolded; RevoSpray system included)
• 57 x 56 x 26 inch (1451 × 1422 × 675 mm) (blades folded; RevoSpray system included)

• 57 x 56 x 25 inch (1451 × 1422 × 645 mm) (blades excluded; RevoSpray system included)

Weight:

Carrier Weight:

• 87 lbs (39.6 kg) (payload system excluded; batteries included)

Empty Weight:

• 105 lbs (48 kg) (RevoSpray system & batteries included)
• 113 lbs (51.5 kg) (RevoCast system & batteries included)

Rated Takeoff Weight:

• 194 lbs (88 kg) (rated spray takeoff weight)

• 201 lbs (91.5 kg) (rated spread takeoff weight)

Diagonal Motor Wheelbase

• 70 inch (1780 mm)

Arm Material

• Glass & carbon fibre composite

Protection Rating

• IPX7

Flight Parameters

High Precision Positioning Duration with RTK Data Latency

• ≤ 600 s

Maximum Flight Speed (Good GNSS Signal)

• 30.8mph (13.8 m/s)

Maximum Flight Altitude

• 6,561 ft. (2000 m)

Hovering Precision (Good GNSS Signal)

• RTK Enabled: ± 10 cm (Horizontal), ± 10 cm (Vertical)

• RTK Disabled: ± 0.6 m (Horizontal), ± 0.3 m (Vertical)

• (Radar function enabled: ± 0.1 m)

Hovering Duration

• 17 min (with no-load @20000 mAh x 2 & takeoff weight: 48 kg)

• 7 min (with full-load @20000 mAh x 2 & takeoff weight: 88 kg)

* Tested in an environment near sea level with a wind speed of less than 3 m/s. For reference only.

Propulsion System

• Motor

Model

• A45

Dimension (Stator)

• 136 × 27 mm

KV Value

• 78 RPM/V

Maximum Tension (Single Motor)

• 99 lbs (45 kg)

Rated Power (Single Motor)

• 4000 W

Electronic Speed Controller

Model

• VC13200

Max. Operating Current (30 s)

• 200 A

Rated Operating Voltage

• 56.4 V

Foldable Propeller

Model

• P4718

Diameter x Pitch

• 47 × 18 inch

XAG RevoSpray 2

Smart Liquid Tank

Rated Volume

• 10.5 gal (40 L)

• Sensor

• Float Liquid Level Sensor

Centrifugal Atomizing Nozzle

Quantity

• 2

Spray Disc Rotational Speed

• 1000 ~ 16000 RPM

Atomized Droplet Size

• 60 ~ 400 μm (Depending on the actual operating environment, spray flow, and other factors)

Spray Width

• 16 - 32 ft. (5 ~ 10 m) (Subject to flight height, dosage, environment, etc)

*With a flight height of 3 ± 0.5 m, a flight speed of 3 m/s and a flow rate (single pump) of 5 L/min, a spray width of 8 m is recorded for reference only.

High-Frequency Pulse Peristaltic Pump

Quantity

• 2

Voltage

• 50 V

Max. Operating Flow Rate

• 3 gal (12 L) /min

Max. Flow Rate (Dual Pump)

• 3GPM (12L/min) system total (1.5 gal (6 L) /min ea)

XAG RevoCast 2

Granule Container Capacity

• 15.8 gal (60 L)

Rated Payload

• 88 lbs (40 kg)

Smart Screw Feeder

Applicable Granule Size

• 1 - 6 mm (Dry and solid granule)

Operating Temperature

• 0 - 40℃

Storage Temperature

• 0 - 40℃

Centrifugal Spreading Disc

Spread Width

• 9 - 20 ft. (3 - 6 m) (Subject to flight altitude, seed weight and shape, dosage, surroundings, etc.)

Spread Amount Precision

• ± 10% (Subject to the shapes and moisture of granules)

PSL Camera

Dimensions

• 2.7 x 1.5 x 0.9 inch (70 × 40 × 25 mm)

Operating Voltage

• 24 - 60 V

Resolution

• 1080P/720P

Encoding Format

• H.264

Frame Rate

• 30 fps

Focal Length

• 3.2 mm

Image Sensor

• 1/2.9-inch CMOS sensor

Power System

Smart SuperCharge Battery

Model

• B13960S

Type

• 13S Lithium Polymer Battery

Rated Capacity

• 20000 mAh (962 Wh)

Rated Output

• 48.1 V/120 A

Maximum Charging Current

• 100 A (5C)

Recommended Charging Temperature

• 10 - 45℃

Super Charger

Model

• CM12500P

Charging Adaptor Quantity

• 1

Power Output

• 2.5 kW

Input Voltage

• AC 90-165 V~50/60 Hz 23 A (Max)
• AC 180-260 V~50/60 Hz 23 A (Max)

Output Voltage & Current

• DC 50-60 V/25 A (Max)/1250 W (AC 90-165 V~50/60 Hz)
• DC 50-60 V/50 A (Max)/2500 W (AC 180-260 V~50/60 Hz)

Recommended Operating Temperature

• -20 ~ 40℃

Auto Super Charge Station

Model

• GC4000

Dimensions

• 482 × 417 × 475 mm

Number Of Cylinders

• One

Net Weight

• 69 lbs (31.5 kg)

Startup

• Electrical starting

Compression Ratio

• 8.5:1

Tank Capacity

• 4 gal (15 L)

Air Intake

• Natural Respiration

Ignition

• Spark Ignition

Fuel Consumption

• ≤ 0.6 L/KW.h (25℃, 0 altitude, 92# unleaded gasoline under national standards @charging power of 3.4 KW)

No-load Speed
2600 RPM

Noise

• ≤ 88 db(A)@1M

Rated Charging Power

• 3.4 KW

Max Output

• 5.1 KW

Service Life
> 1000 hours

otal Displacement

• 223CC

Pollutant Emission
GB Stage II

Communication & Control System / Smart ControlStick

Model

• ACS2G

Compatible Device

• XAG P100 Agricultural UAV
• XAG V40 Agricultural UAV

• XAG P40 Agricultural UAV

Operating Frequerncy

• SRRC 2.4000 GHz to 2.4835 GHz

Signal Range (No Interference / Obstruction)

• 800 m

Power Consumption

• < 9 W

Recommended Operating Temperature

• -20 ~ 55℃

Recommended Charging Temperature

• 0 ~ 45℃

Note:

• The specific performance may vary depending on the working environment, temperature, user habits, etc. Please use strictly in accordance with the official product guidelines.
