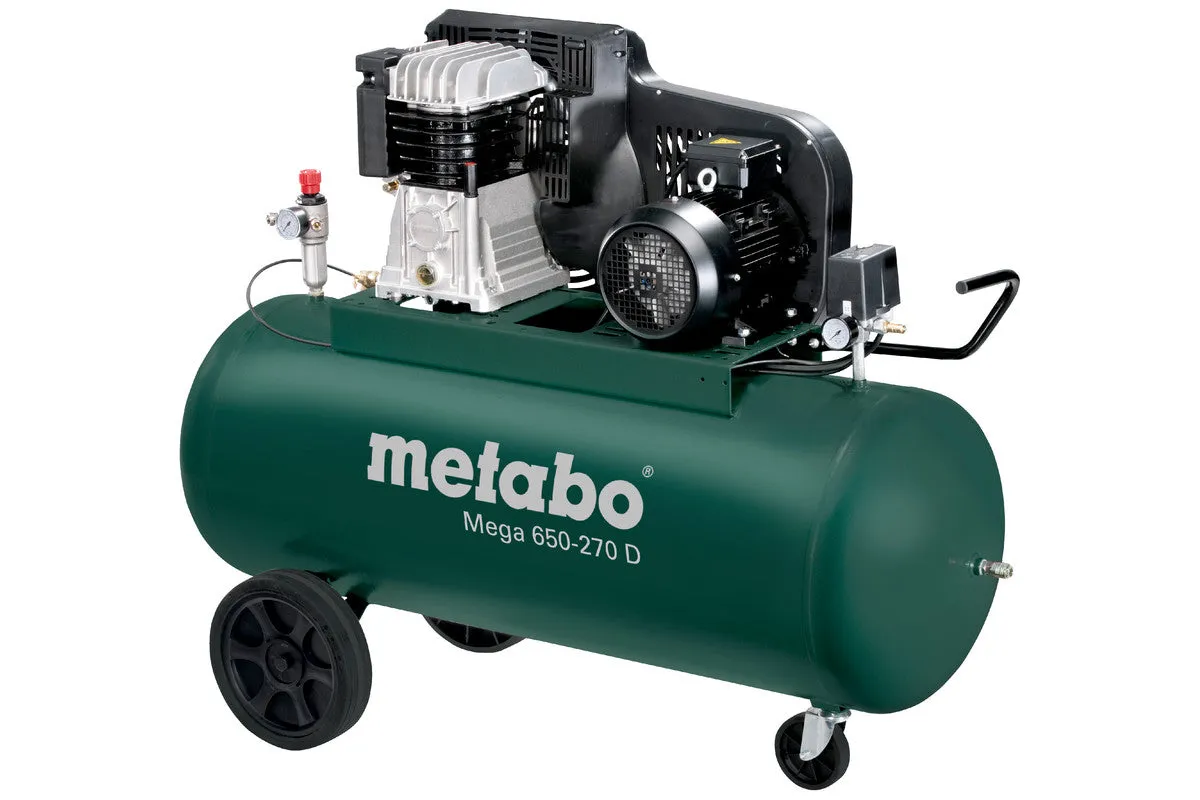

- More powerful and robust V-belt compressor for demanding use
- Belt drive for low speeds and a particularly quiet operation
- Two-stage compression for particularly high performance and long service life
- For three-phase current
- Working pressure can be regulated according to application by means of a filter pressure reducer with manometer
- Convenient pressure switch for good cold starting, complete with relief valve
- Additional manometer for displaying the tank pressure
- Overload protection: protects the motor from overheating
- Oil-lubricated 2-cylinder piston compressors for high air supply volume
- Re-cooler for less condensation water formation
- Rubberised, stable wheels and pull handle for mobile use
- 10 year tank warranty against rust
Included
- 3 Universal couplings
Specifications
- Suction rate: 650l/min
- Filling capacity: 520l/min
- Effective delivery volume (at 80% max. pressure): 450 l/min
- Maximum pressure: 11bar
- Mains voltage: 380 - 415V
- Rated input power: 4kW
- Maximum speed: 1400rpm
- Tank capacity: 270l
- Sound pressure level (LpA): 88dB(A)
- Sound power level (LwA): 97dB(A)
- Dimensions: 1530 x 600 x 1160mm
- Weight: 170kg
- Cable length: 1.5m
