About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
Specification:
Brand: AtomStack
Model: A6 Pro with B3 Protective cover
Engraving Size: 365*305mm
Overall Machine Power: 50W
Laser Output Optical Power: 5-6W
Laser Wavelength: 455±5nm
Laser Spot: 0.05*0.05 mm
Focusing Mode: fixed focus laser, no focus

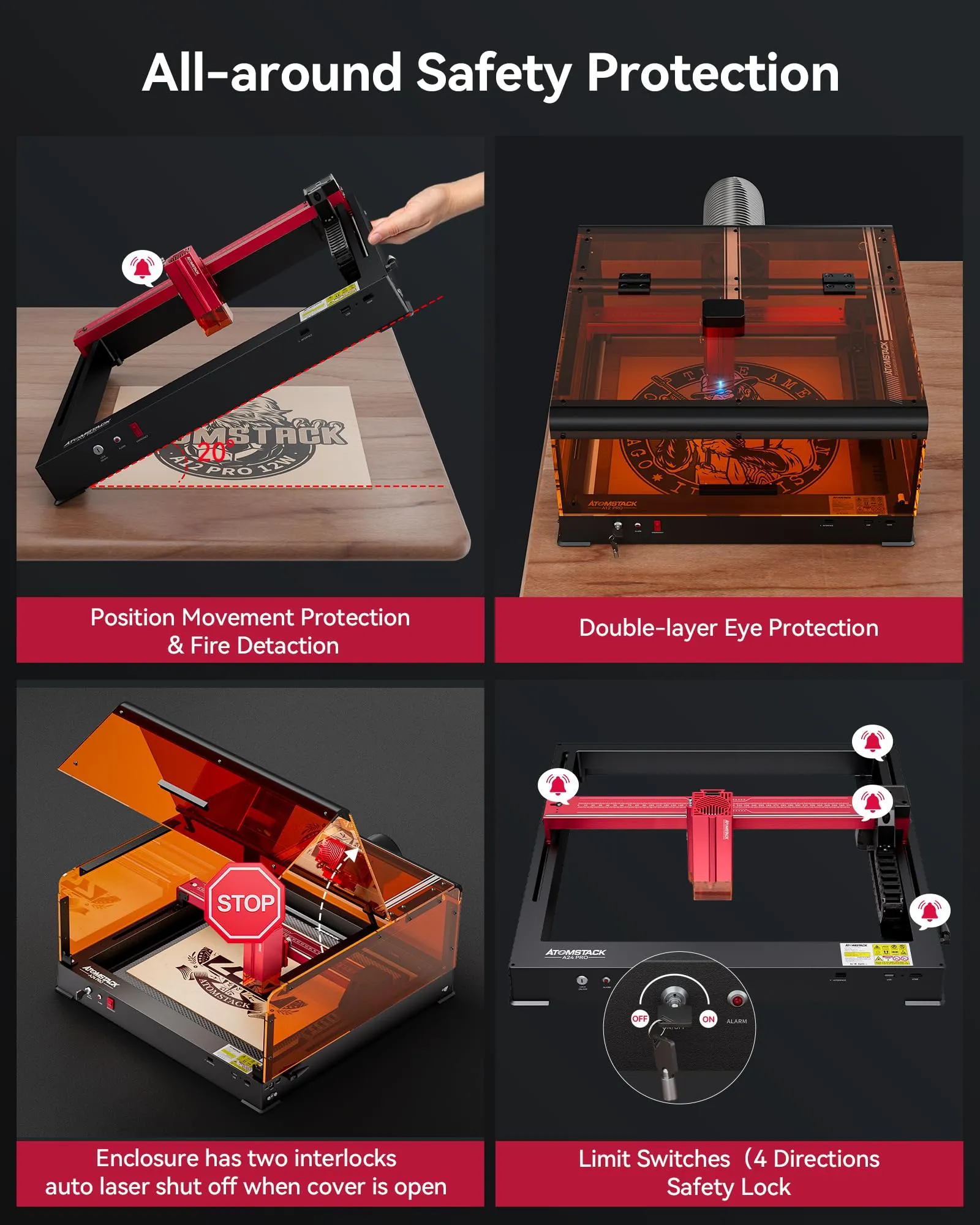

Laser shield: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles.
Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS
Supported File Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.
Data Transfer Method: USB, APP
Power Supply: International standard power
Input: 100-240V AC, 50/60HZ
Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
Production Description:

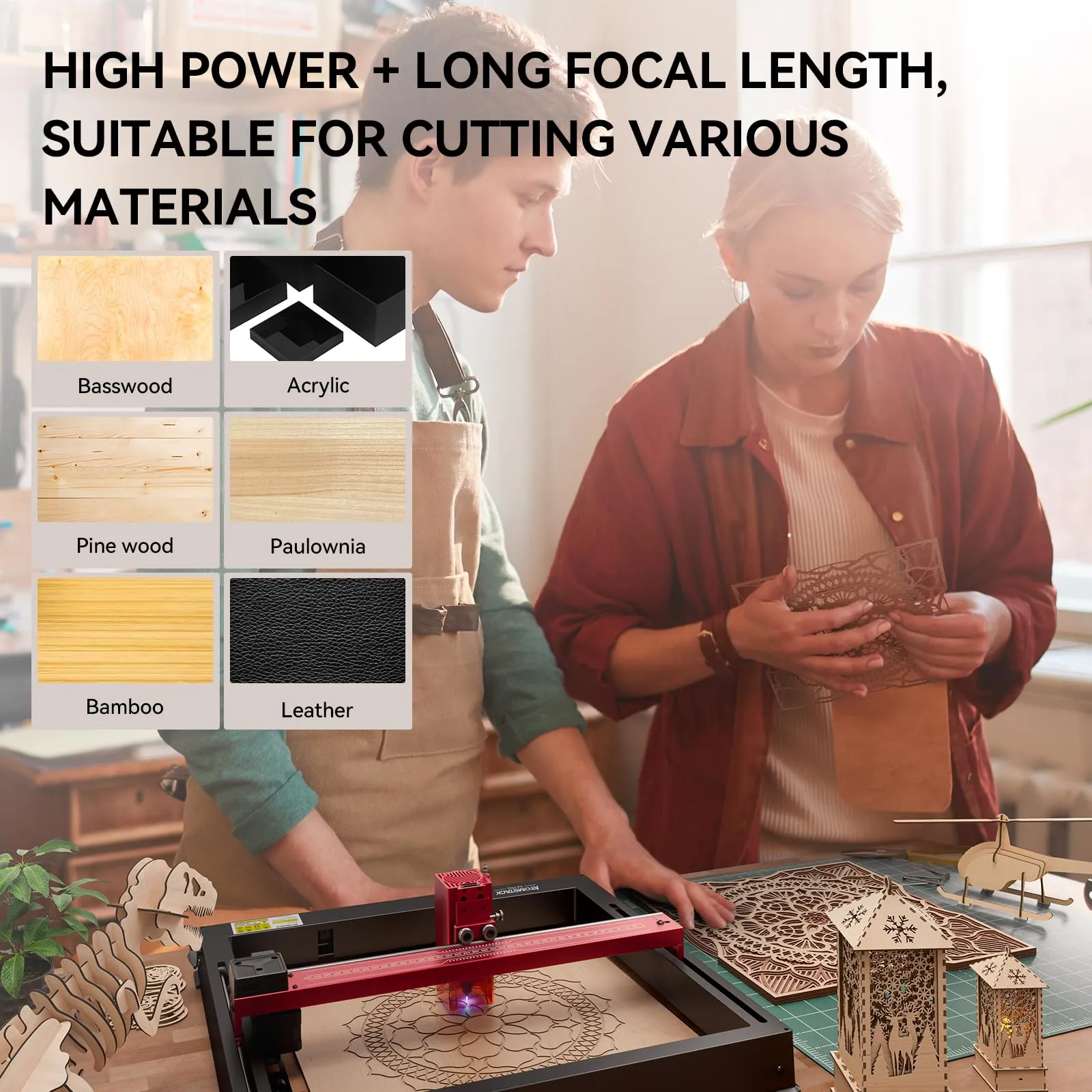

- 6 W ultra-high performance: the ATOMSTACK A6 Pro uses the most stable 6 W high-performance laser module. With the latest laser point compression technology, the laser power is strong and has a long focal length. It can cut through 3 mm poplar wood panels, 3 mm black acrylic sheets, 3 mm poplar plywood and a layer of laser vinyl. It also features a fixed focusing design for fast and accurate focusing within 10 seconds.
- Blue-ray laser point compression technology: the ATOMSTACK A6 Pro laser engraving machine uses second generation laser point compression technology, which further compresses the laser point and significantly improves cutting ability. Compared to machines of the same category, the cutting ability is increased by 30%. The laser focus range can be as small as 0.05 x 0.05 mm due to ultra-fine laser focusing.

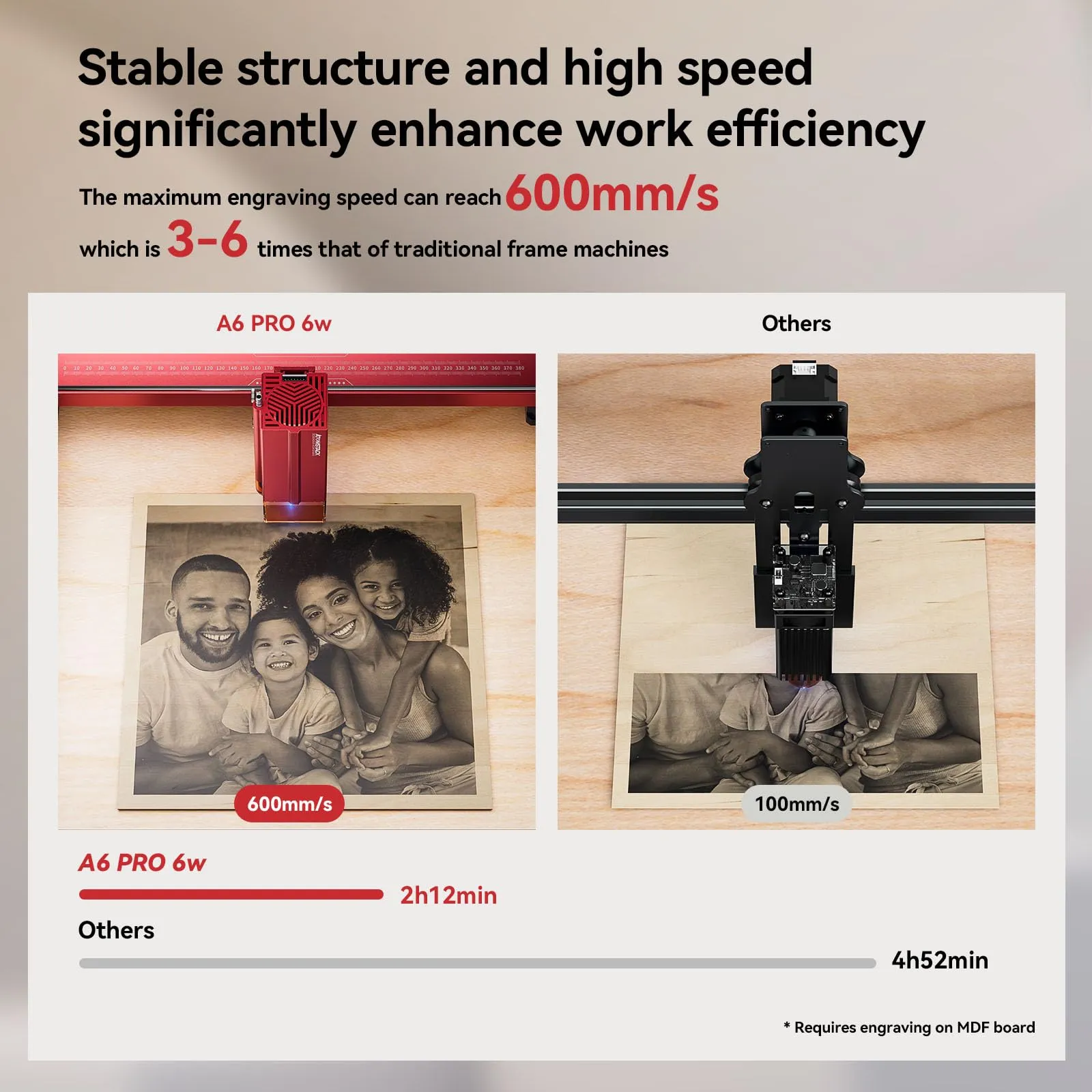

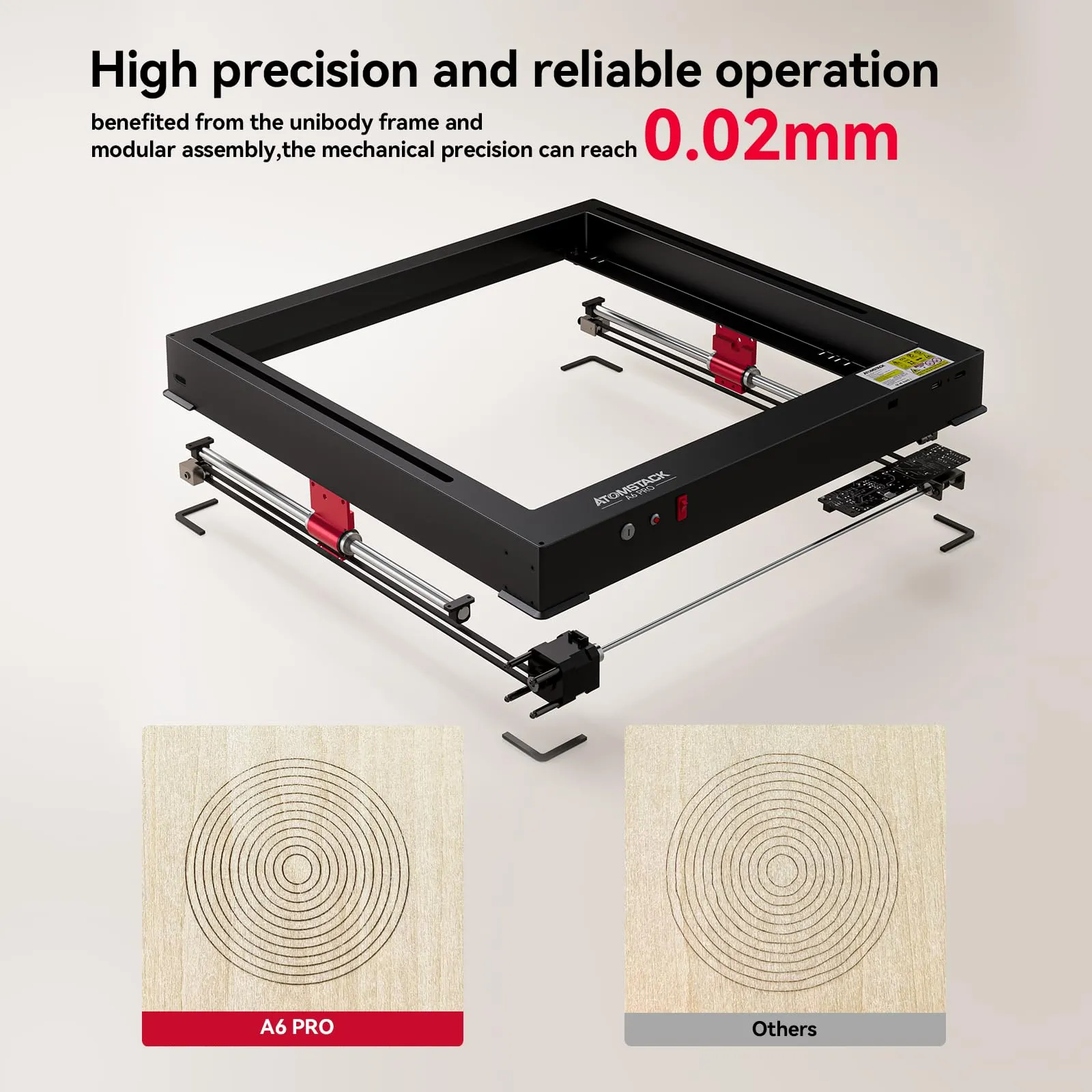

- High speed and integrated stable structure: the maximum engraving speed of the ATOMSTACK A6 Pro can reach 600 mm/s, which is 3-6 times that of conventional frame machines. The ATOMSTACK A6 Pro X-axis metal uses a double guide rail structure, which leads to minimal work fluttering and ensures no vibrations when the machine works at a speed of 500 mm/s.

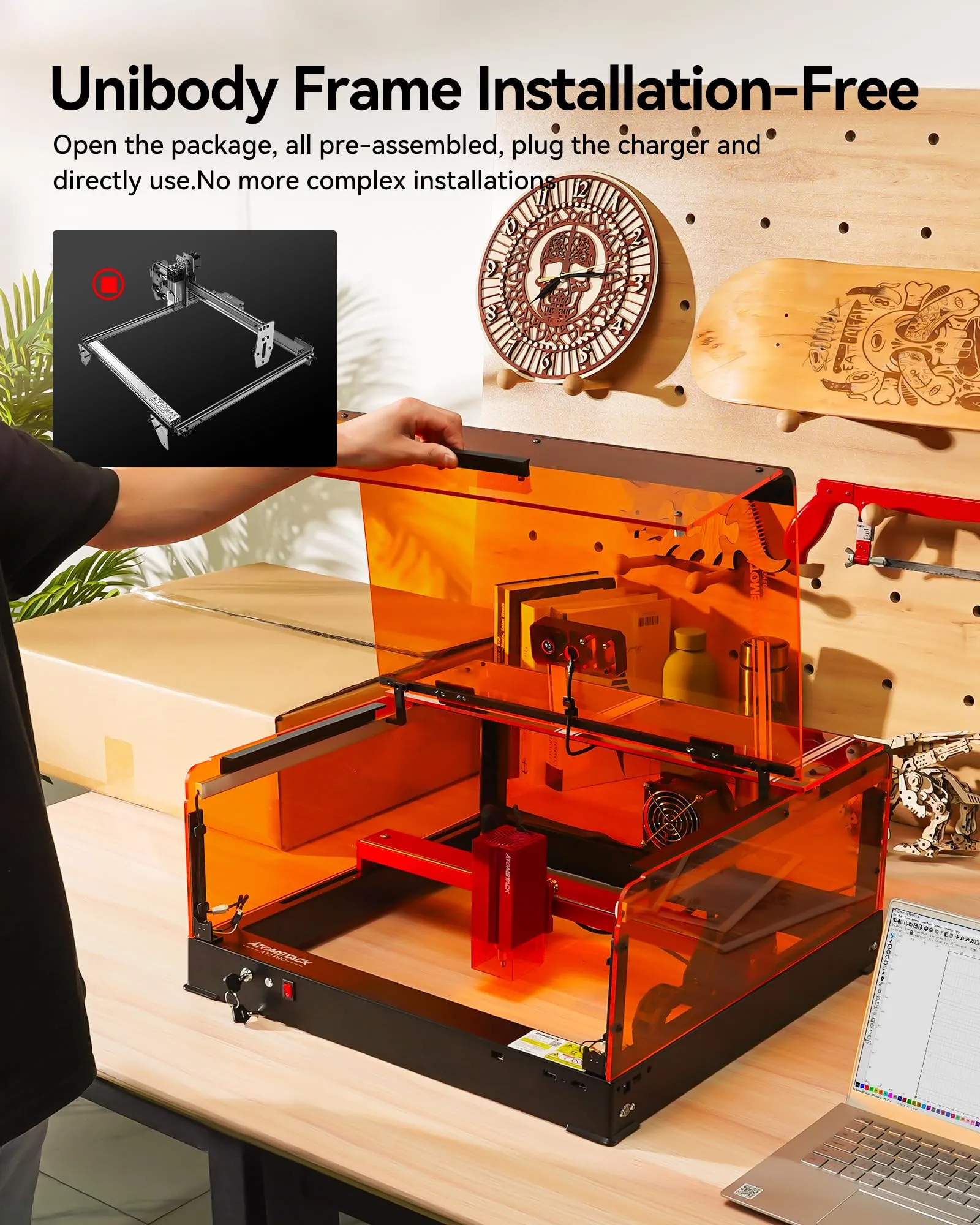

- Tank chain bundling, no installation required: To improve the appearance and stability of the machine, the ATOMSTACK A6 Pro laser engraving machine uses a tank chain cable connection solution that allows smooth and tangle-free cable operation and improves the life of the cables. The A6 Pro case is made of aluminium alloy, which can be used immediately after unpacking without installation.

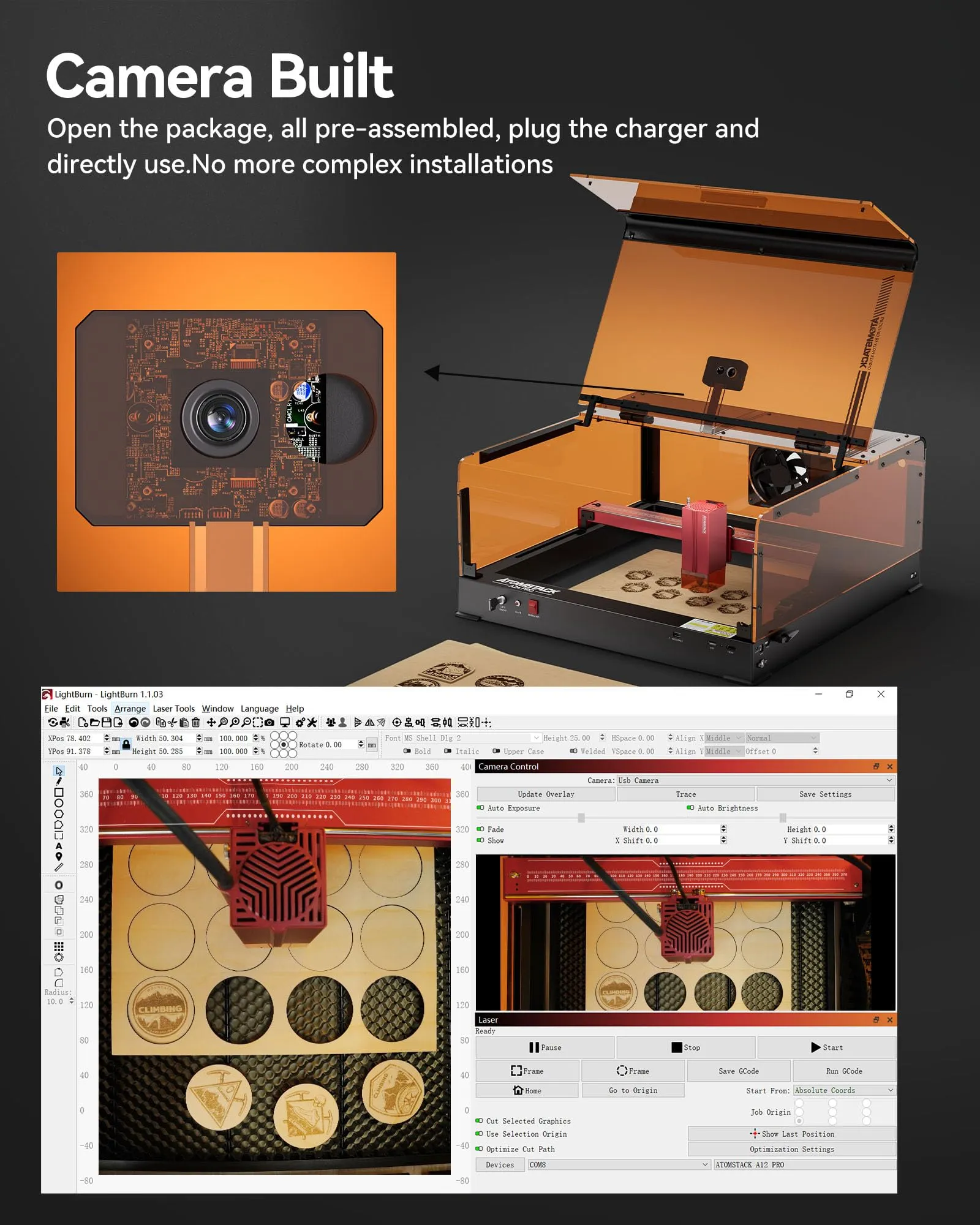

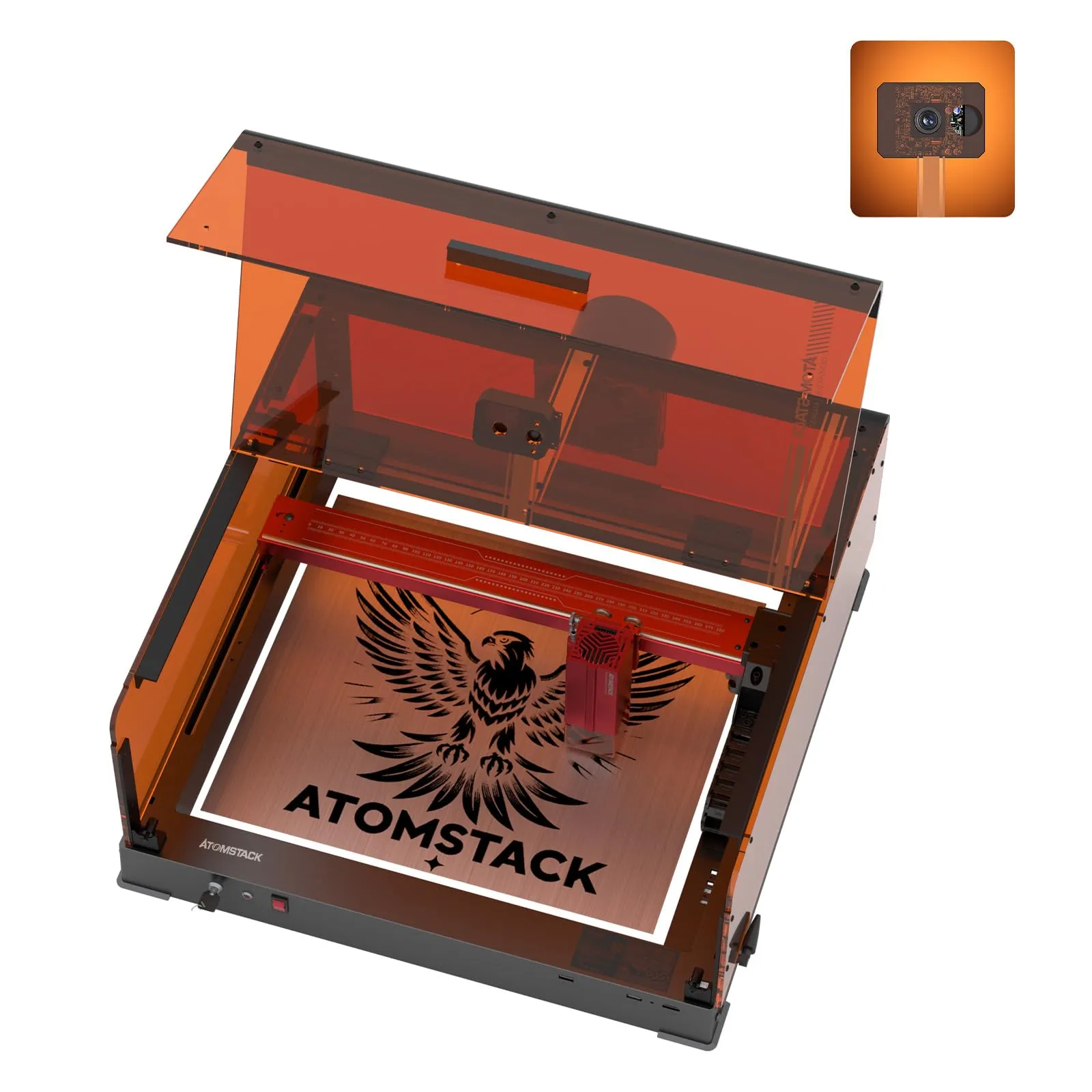

- Equipped with B3 laser housing: The entire body of the ATOMSTACK B3 is made of acrylic, allows you to observe the working status of the machine and protect it from strong light. The built-in camera and LED lighting at the top allow precise positioning and machine control.
