About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

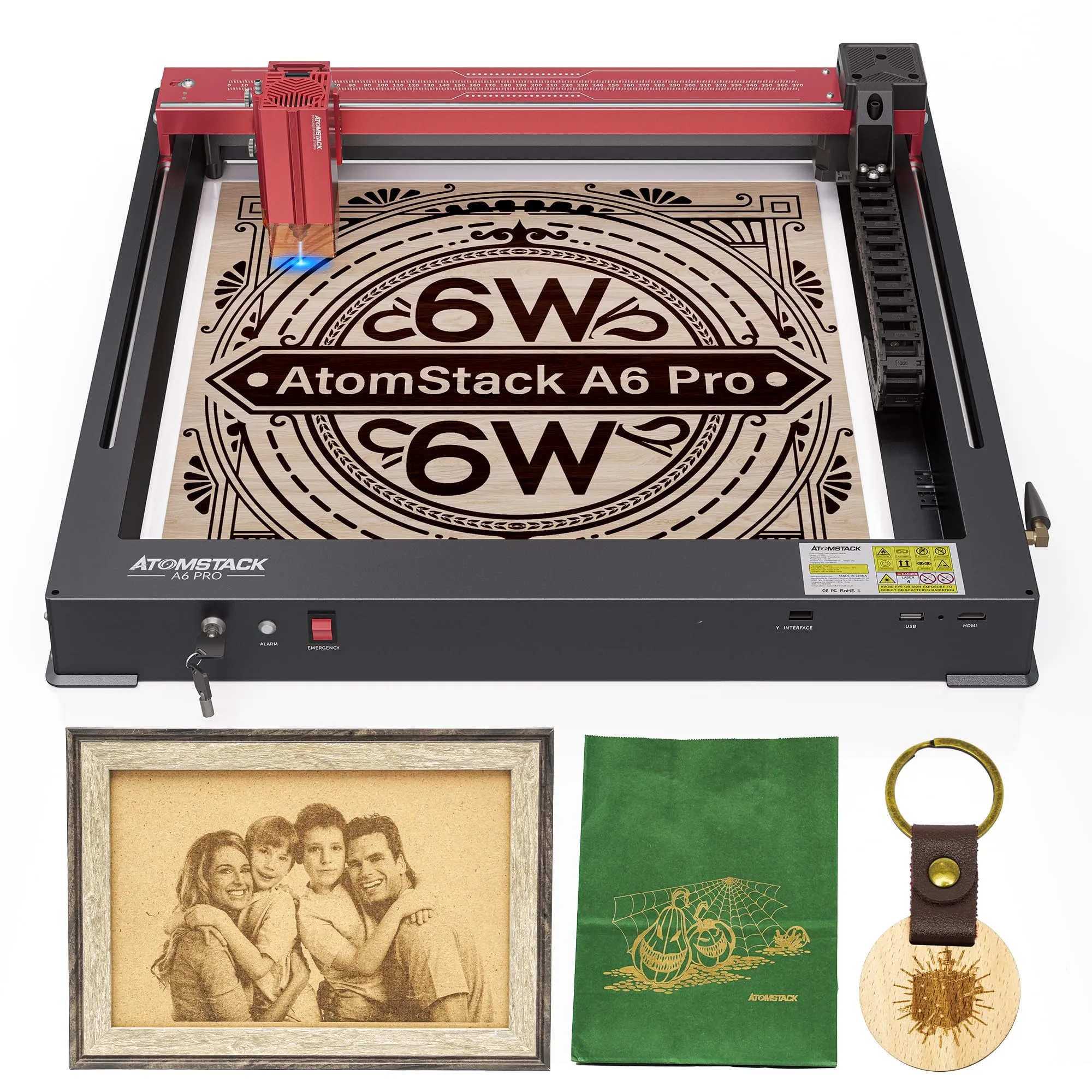

Specification:
Brand: AtomStack
Model: A6 Pro
Engraving Size: 365*305mm
Overall Machine Power: 50W
Laser Output Optical Power: 5-6W
Laser Wavelength: 455±5nm
Laser Spot: 0.05*0.05 mm
Focusing Mode: fixed focus laser, no focus

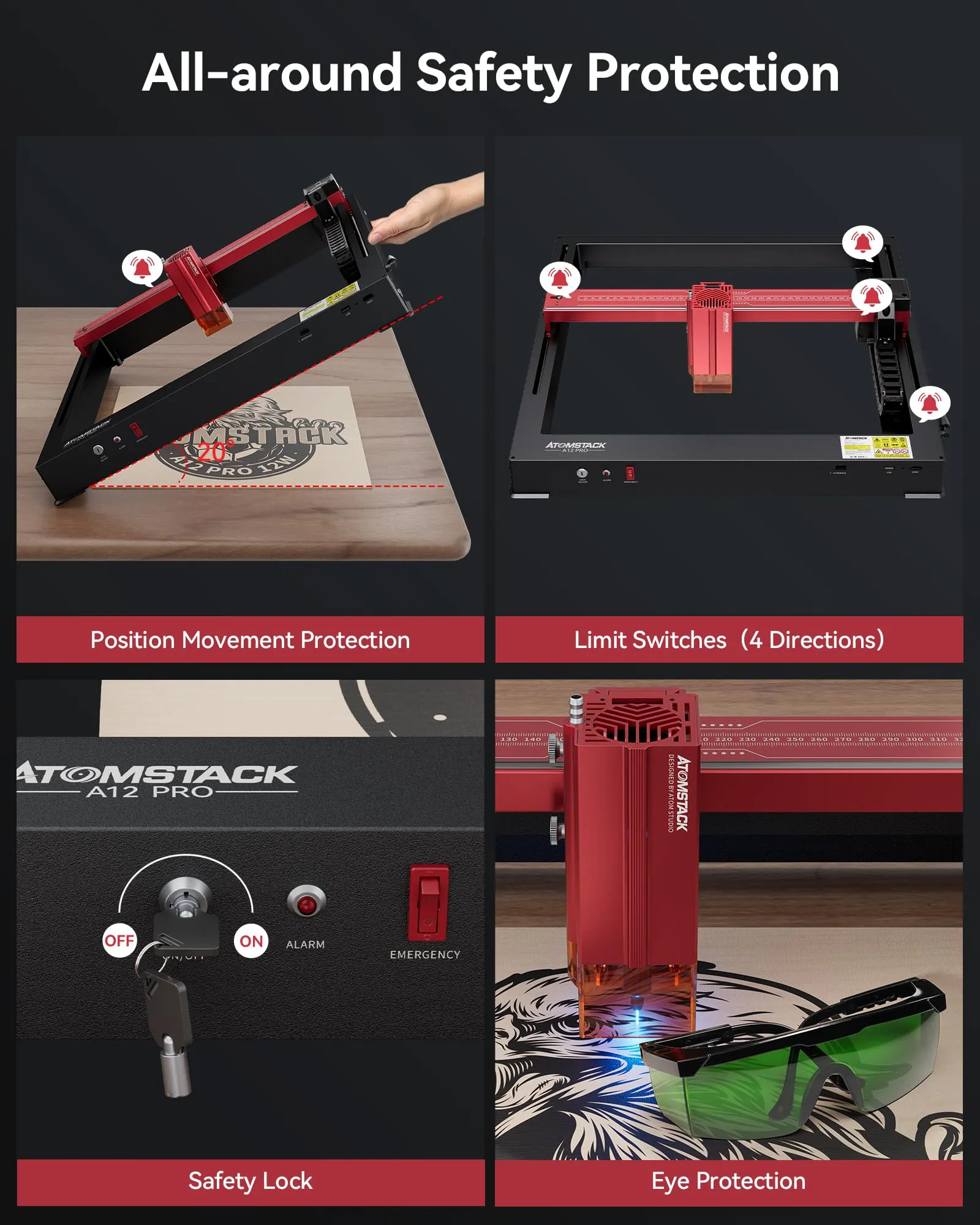

Laser shield: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles.

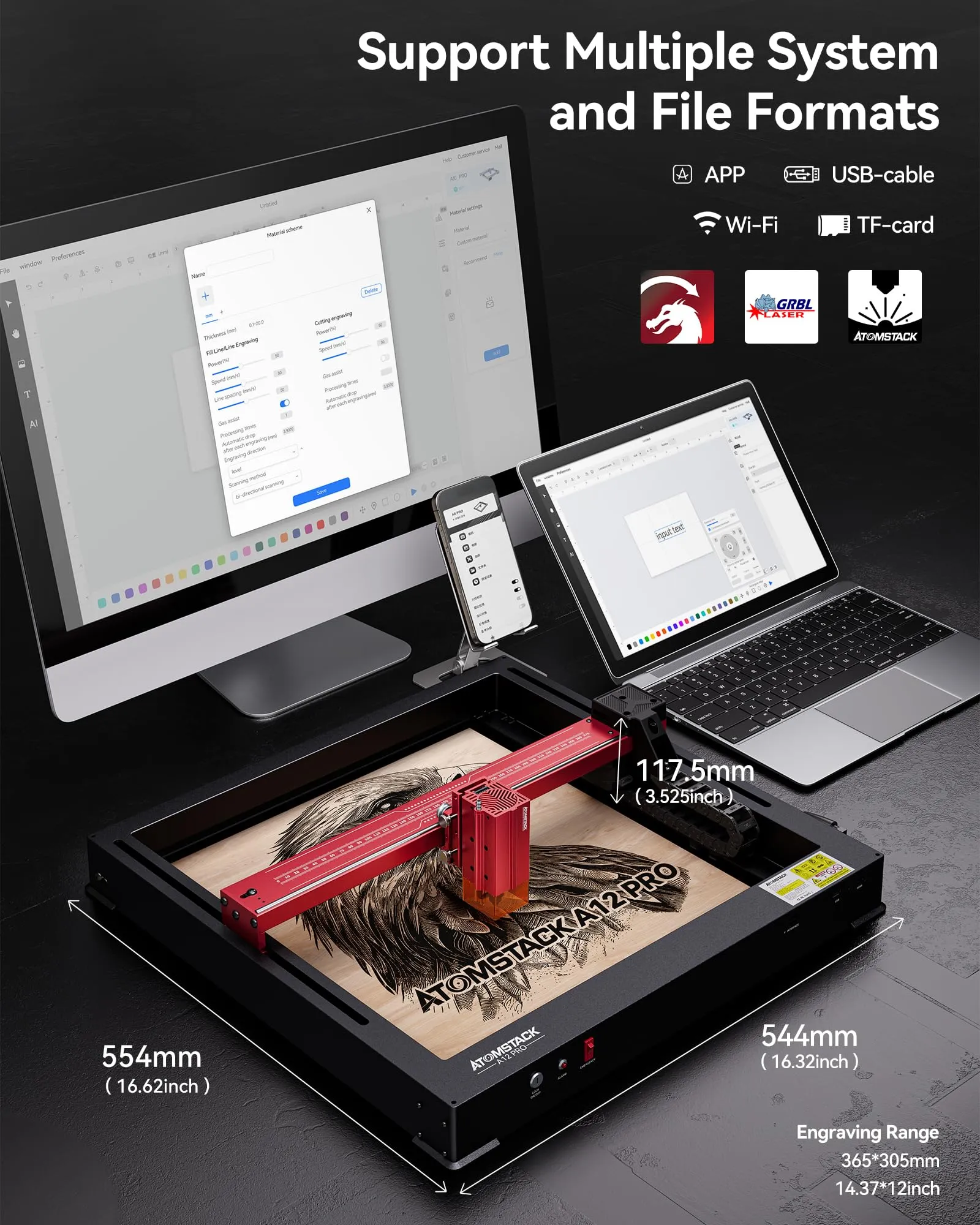

Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS
Supported File Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.
Data Transfer Method: USB, APP
Power Supply: International standard power
Input: 100-240V AC, 50/60HZ
Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
Production Description:
- Ultra High Efficiency 6W - ATOMSTACK A6 Pro uses the most stable high efficiency 6W laser module. With the latest laser point compression technology, the laser power is strong and has a long focal length. It can cut 3mm poplar wood boards, 3mm black acrylic boards, 3mm poplar plywood and laser cut vinyl. It also features a fixed focus design that ensures fast and accurate focusing within 10 seconds.
- 【New Blue-ray Laser Point Compression Technology】ATOMSTACK A6 Pro laser engraving machine adopts the second generation laser point compression technology, which further compresses the laser point and greatly improves the cutting ability. Compared to machines of the same category, the cutting capacity is increased by 30%. The laser focusing range can be as small as 0.05 x 0.05 mm thanks to ultra-fine laser focusing.
- 【High Speed & Integrated Stable Structure】The maximum engraving speed of ATOMSTACK A6 Pro can reach 600mm/s, which is 3-6 times faster than traditional frame machines. The X-axis of the ATOMSTACK A6 Pro uses a double rail structure, which leads to minimal operating flutter and does not cause shock when the machine runs at a speed of 500 mm/s.

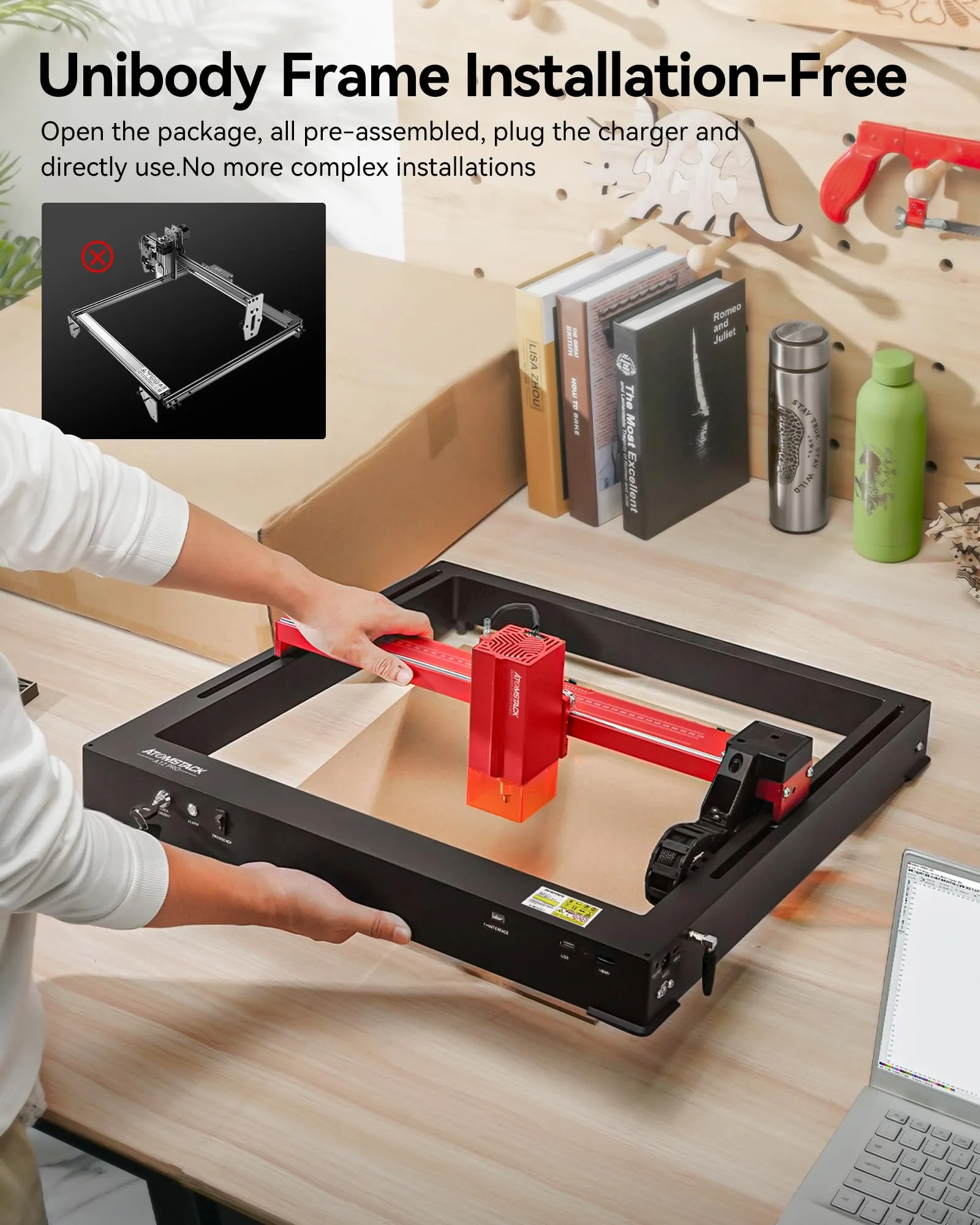

- 【Chain Tank, No Installation Required】To improve the appearance and stability of the machine, the ATOMSTACK A6 Pro laser engraving machine uses a fuel cable tying solution, which enables smooth and tangle-free operation of the cable and improves the service life of the cables. The A6 Pro case is made of aluminum alloy, which can be used immediately after unpacking without installation.
- 【New Non-Clog Laser Module】The ATOMSTACK A6 Pro laser module features a tool-free focusing module and an integrated air assist system that eliminates cable interference and has a simple and elegant design. It ensures long-term use without clogging or contamination of the lenses and significantly improves the life of the laser module.
