About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
Production Description:

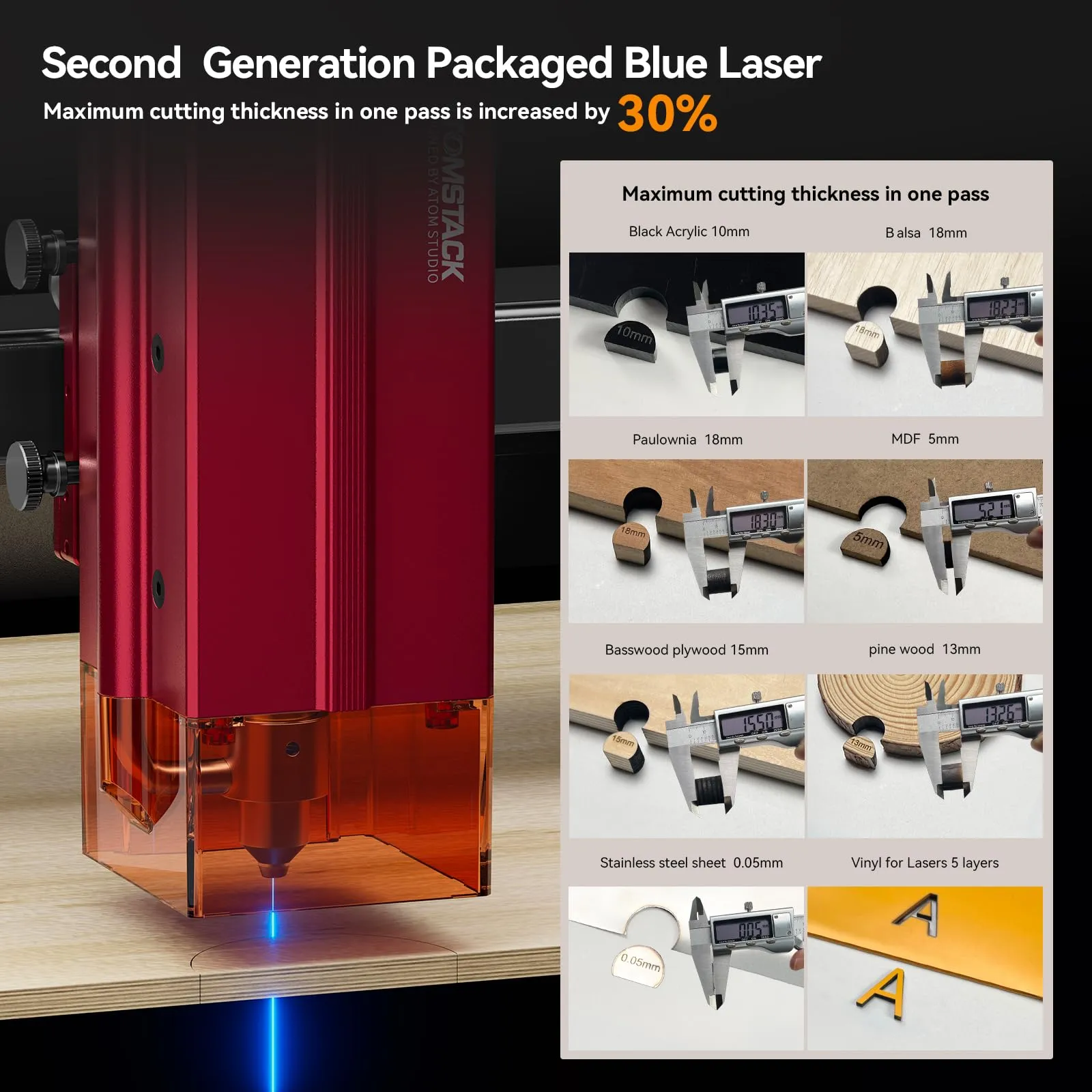

20W ULTRA HIGH PERFORMANCE: Using the most stable 20W laser module with high optical power currently. The latest coupling technology of four second-generation fibre encapsulated 6W lasers with high performance and long optical waist can cut 18 mm Paulownia wood panels, 10 mm black acrylic plates, 15 mm lime plywood, 5 mm MDF and 5-layer laser-specific vinyl, and even cut a 0.05 mm thick stainless steel piece at once. It also features a fixed focus design and can focus quickly and accurately in 10 seconds.

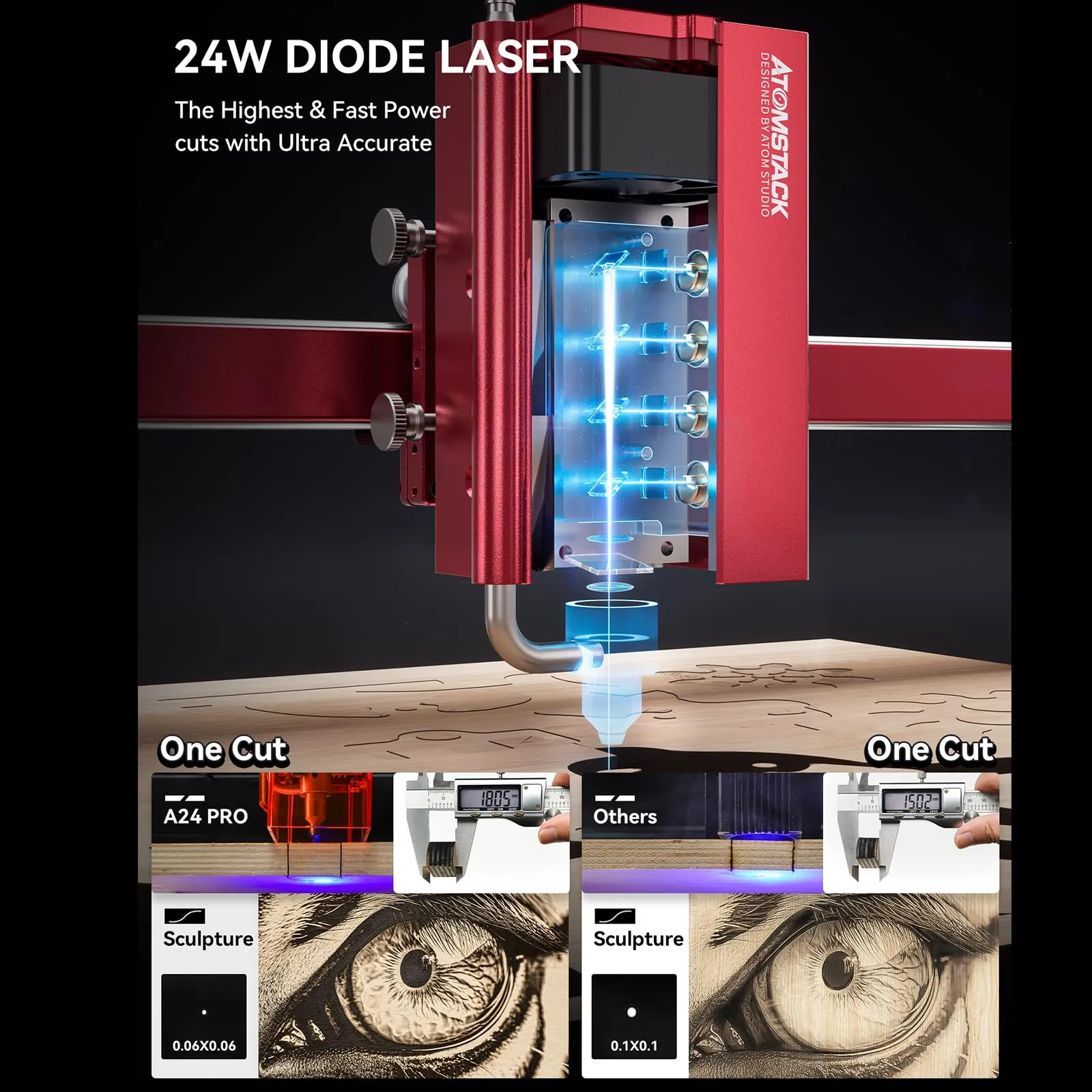

Second Generation Blue Light Laser Packaging Process:The A24Pro laser adopts the second generation fiber compression packaging process. The fiber bundle compresses the laser, further compressing the laser point size and significantly improving cutting ability. It also improves the heat dissipation efficiency of high-performance lasers and extends the life of the laser.
Upgraded Compressed Point Coupling Technology The ultra-fine laser focus range has been reduced to 0.06*0.06mm. The high density laser can easily cut 20mm thick plywood and 30mm thick black acrylic. Can engrave mirror metal made of stainless steel, ceramic, glass directly, engraving and cutting speed. It is 40% higher than the ordinary model and the extreme cutting effect is comparable to that of a 300W CO₂ laser engraving machine.

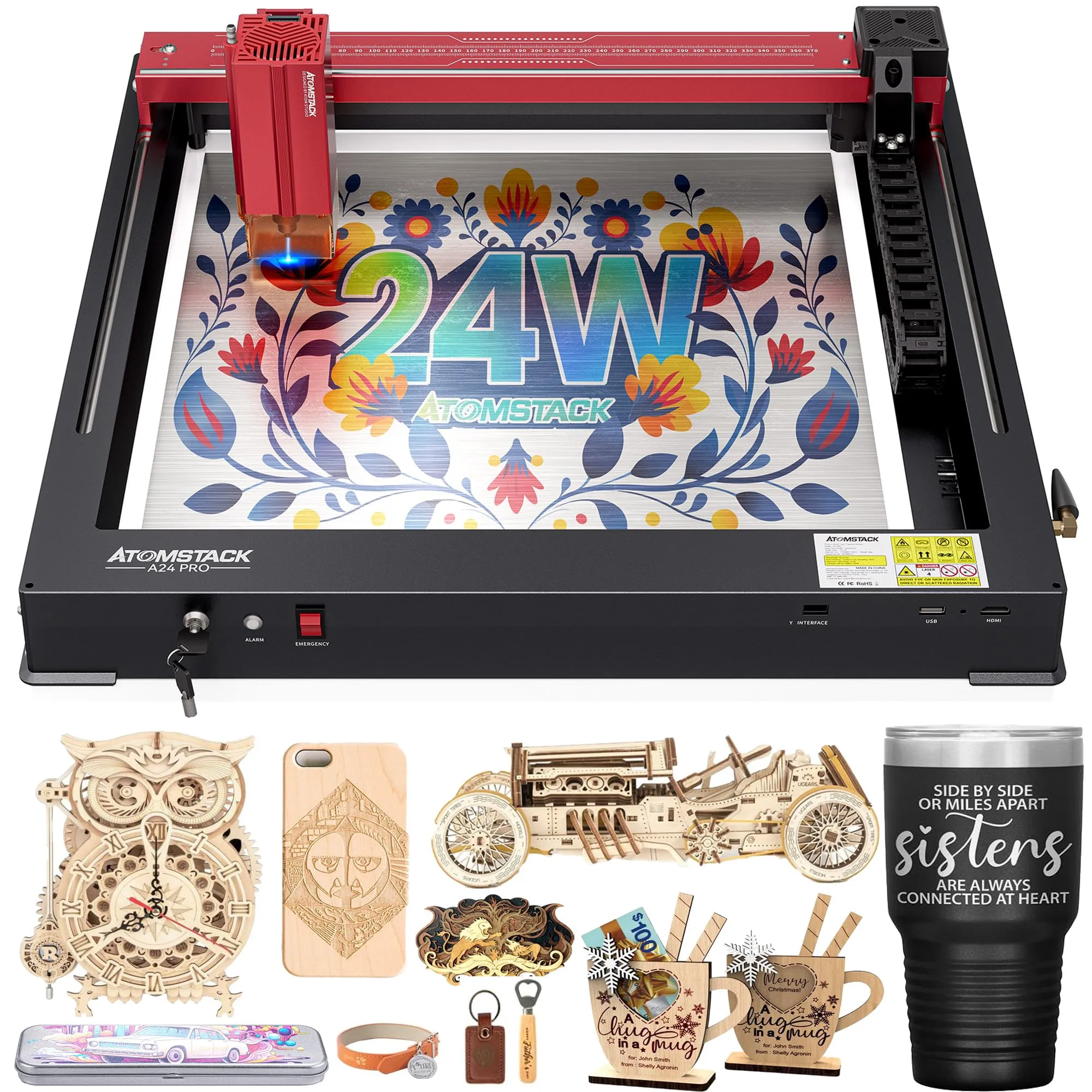

No installation required, ready to use: the overall frame of the ATOMSTACK A24Pro laser engraving machine is made of aluminium alloy. It is ready to use without installation and has excellent structural stability. Stable and fast structure, the lower frame is formed in one piece and the X-axis metal adopts a two-axis guide rail structure. The working vibrations are very low and ensure that the machine is at a high speed of 36,000 mm/min. does not wobble.
Tank Chain Bundling & New Clog Free Laser To make the machine structure more stable, Atomstack A24 Pro uses a solution for bundling the tank chain wires. The wiring harness runs smoothly without tangling, and improves the life of the cable. The new A20 laser has an integrated, tool-free focusing module and a double-layer wind guard cover, which ensures long-term use without clogging or contamination of the lens, significantly extending the life of the laser.
Specification:
Brand: ATOMSTACK
Model: A24 Pro.

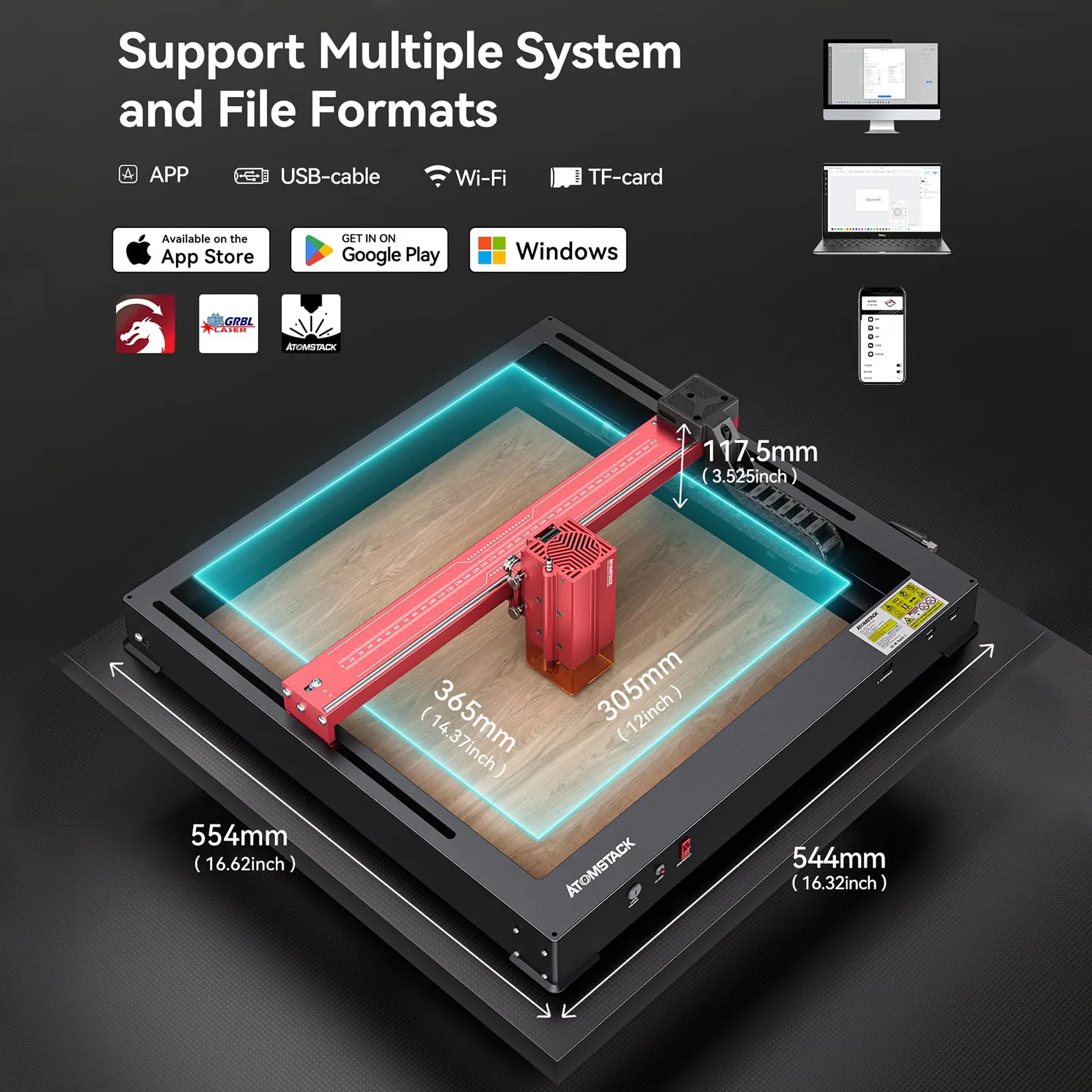

Engraving size: 370 x 310 mm.
Total power of the machine: 120 W.
Optical laser output power: 24 W
Laser wavelength: 455±5nm
Laser point: 0.02 mm.
Focusing mode: fixed focus laser, no focus

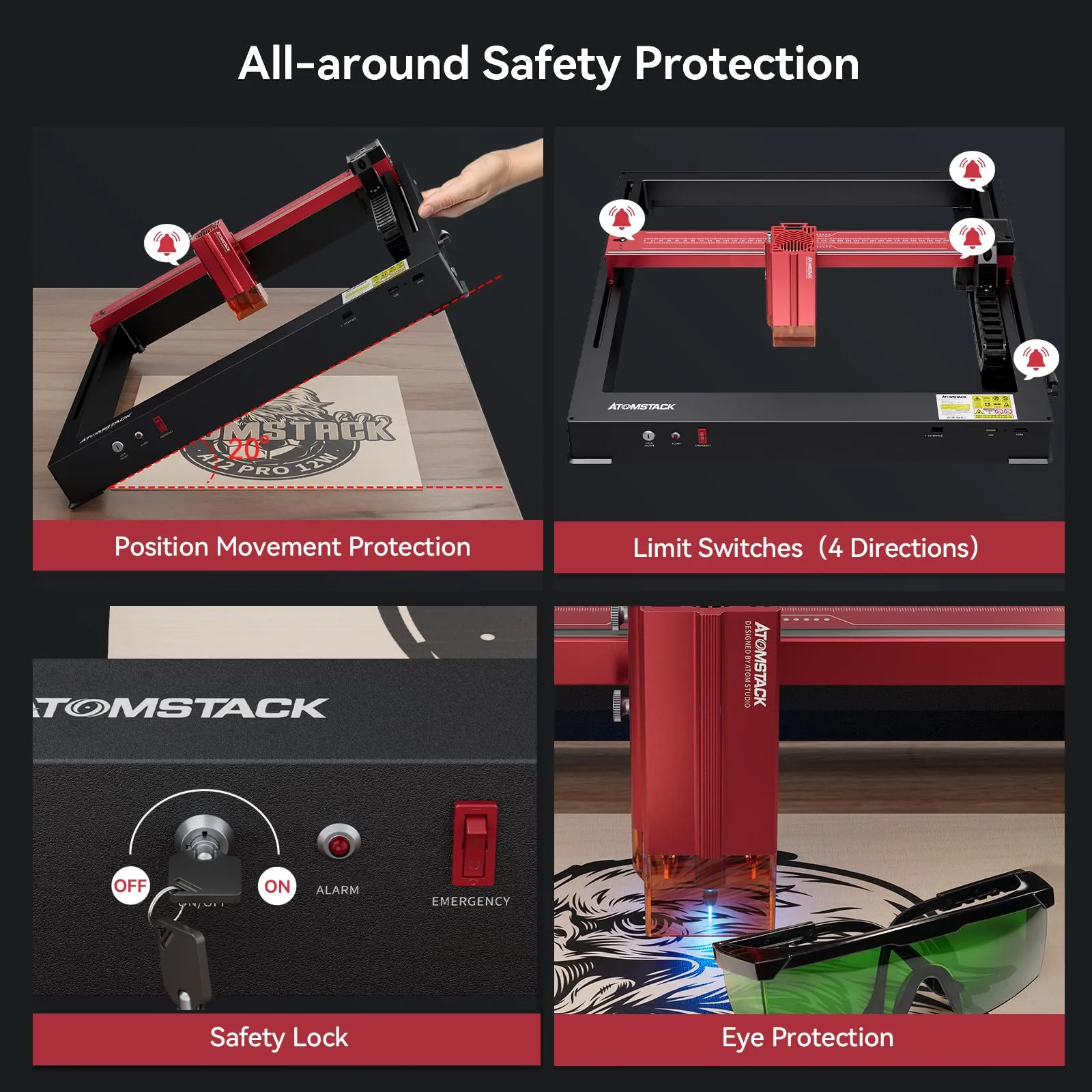

Laser protection: there is a protective shield on the laser that protects the user's eyes, so no additional goggles need to be worn.
Operating software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10
Supported file formats: NC, BMP, JPG, PNG, DXF.
Data transfer method: USB
Power supply: international standard current
Input: AC 100-240V 50/60Hz
Output: 24V 5A.
Certification: CE FCC RoHS FDA PSE
